Wheel Master Weinmann Zac 19 Wheels 700c Review

Last Updated on March 26, 2022 by FAB Jim The Cyclist

I needed some 700c wheels that have a vintage look and can take some wider tires and landed on these.  They are silver and not too deep which I think delivers an old school look.  They also have 36 spokes which is more vintage and hopefully leads to no broken spokes.  I had to buy them separately as I couldn’t find a set for sale that I liked.  They are a pretty good match except for the skewers, but I have others I am planning to use, so that’s not a problem for me.  They both have Weinmann Zac 19 double wall rims.  I didn’t realize that Wheel Master builds these in the USA, so that’s nice to see.  To complete my old school look I went with Schrader valves, but they have presta versions and there are the inserts for converting too. The same wheels are available in black.

Front

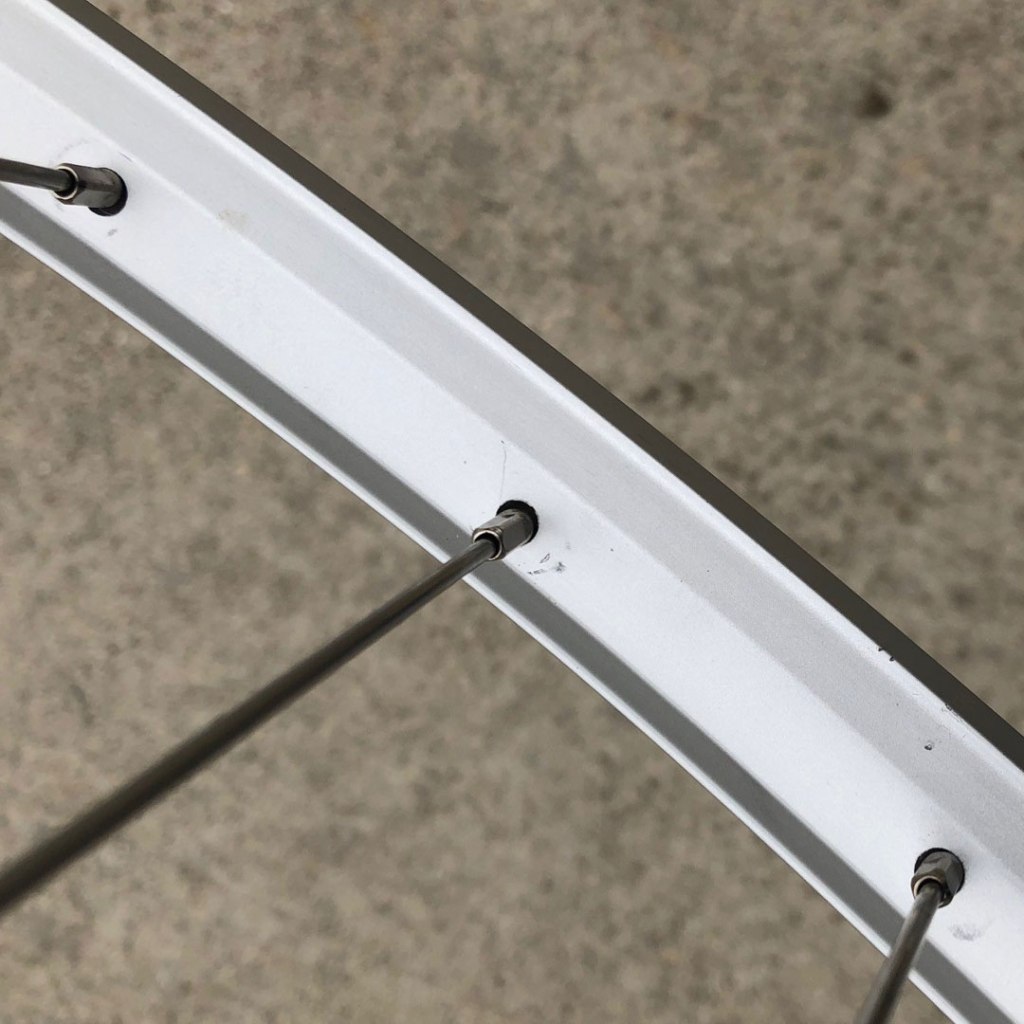

The highlight of the front wheel seems to be the DT Swiss spokes.  The hub is a generic, but nicely silver Wheel Master MT5000.  Seems to spin nice and is true.  Should serve me well.

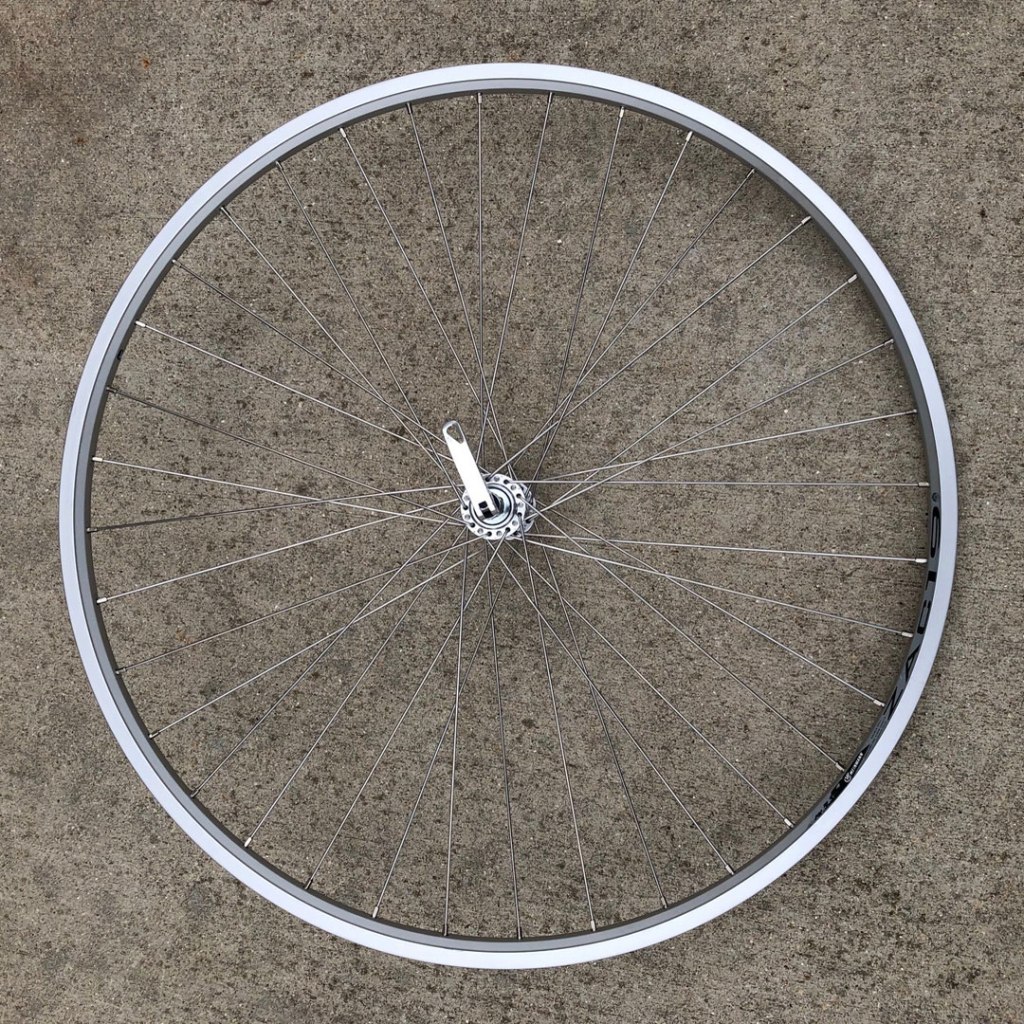

Wheel Master Weinmann Zac 19 Front Wheel 700c

Specs

Model: 66619

Hub: W/M MT5000

Axle: QR

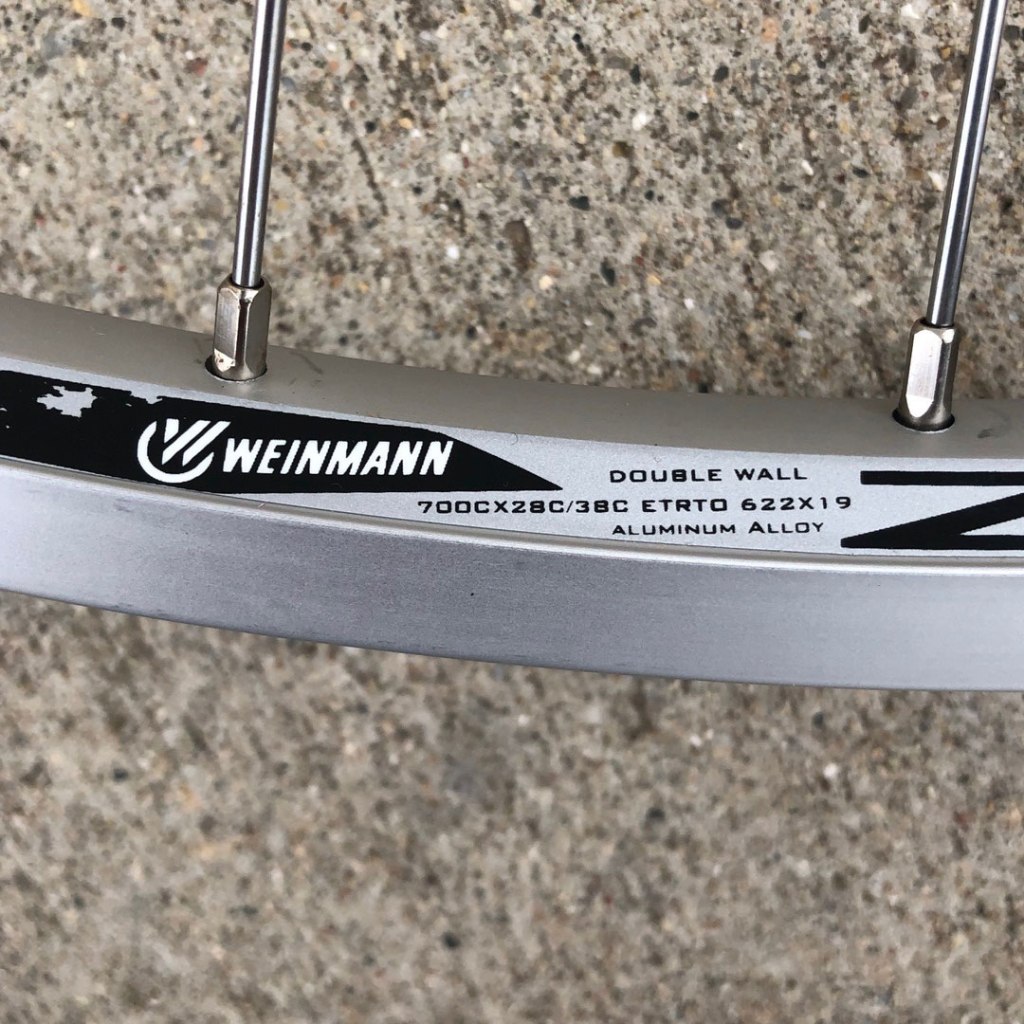

Rim: WEI ZAC19

Size: 700c

Brake Type: Rim

Spoke Type: DT SL 2.0

Spoke Count: 36H

Eyelet: Single

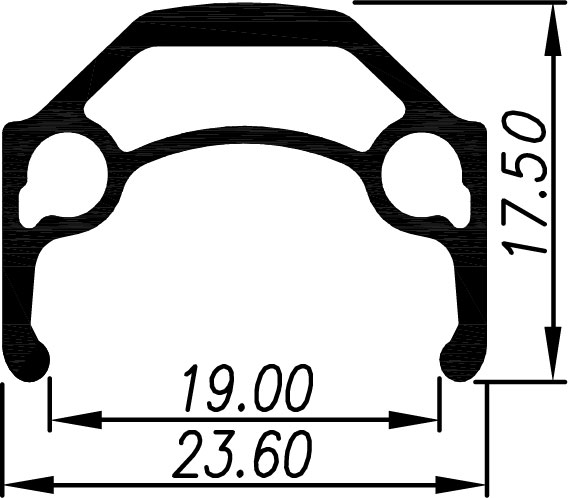

Rim Inside Width: 19mm

Rim Outside Width: 23.6mm

Joint: Pinned

Spacing: 100mm

Color: Silver

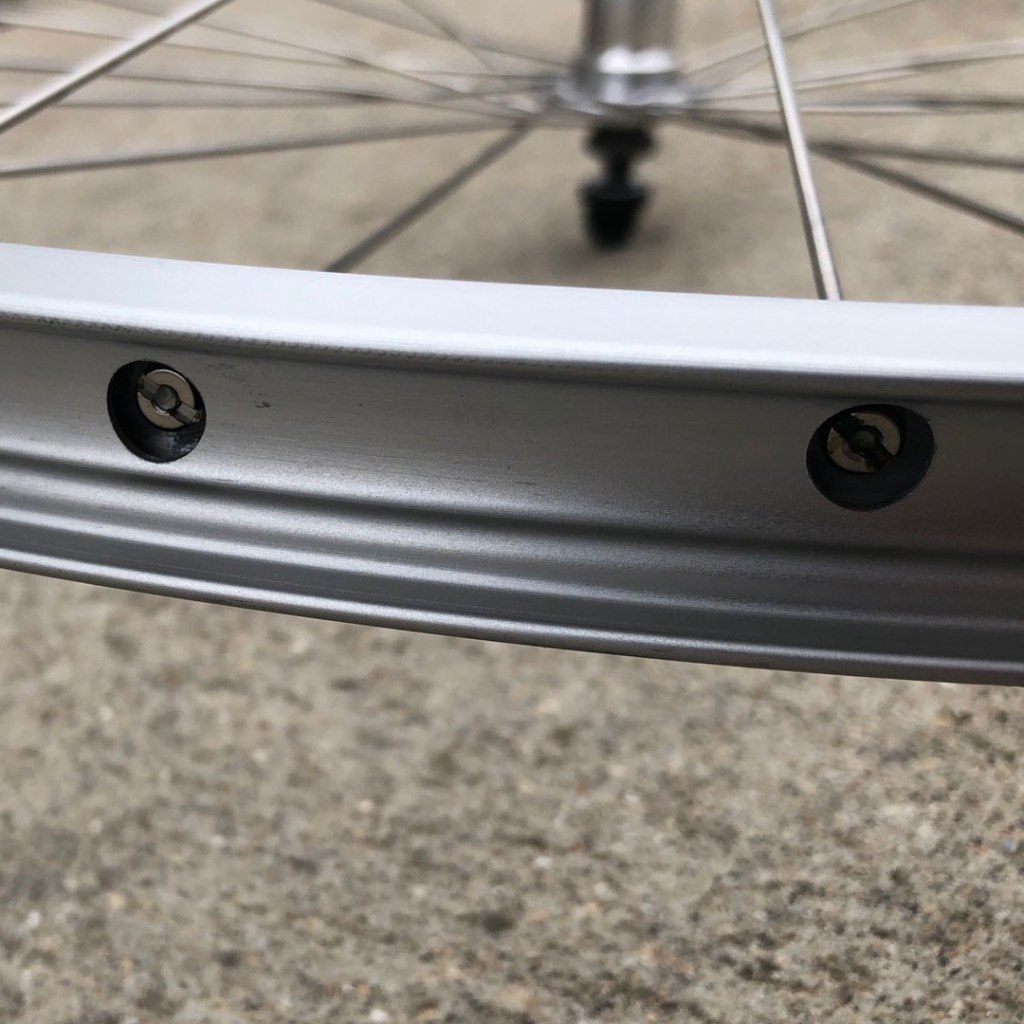

Wall: Double

Tire Size: 28-38c

Valve: Schrader

Weight: 960 grams

Rear

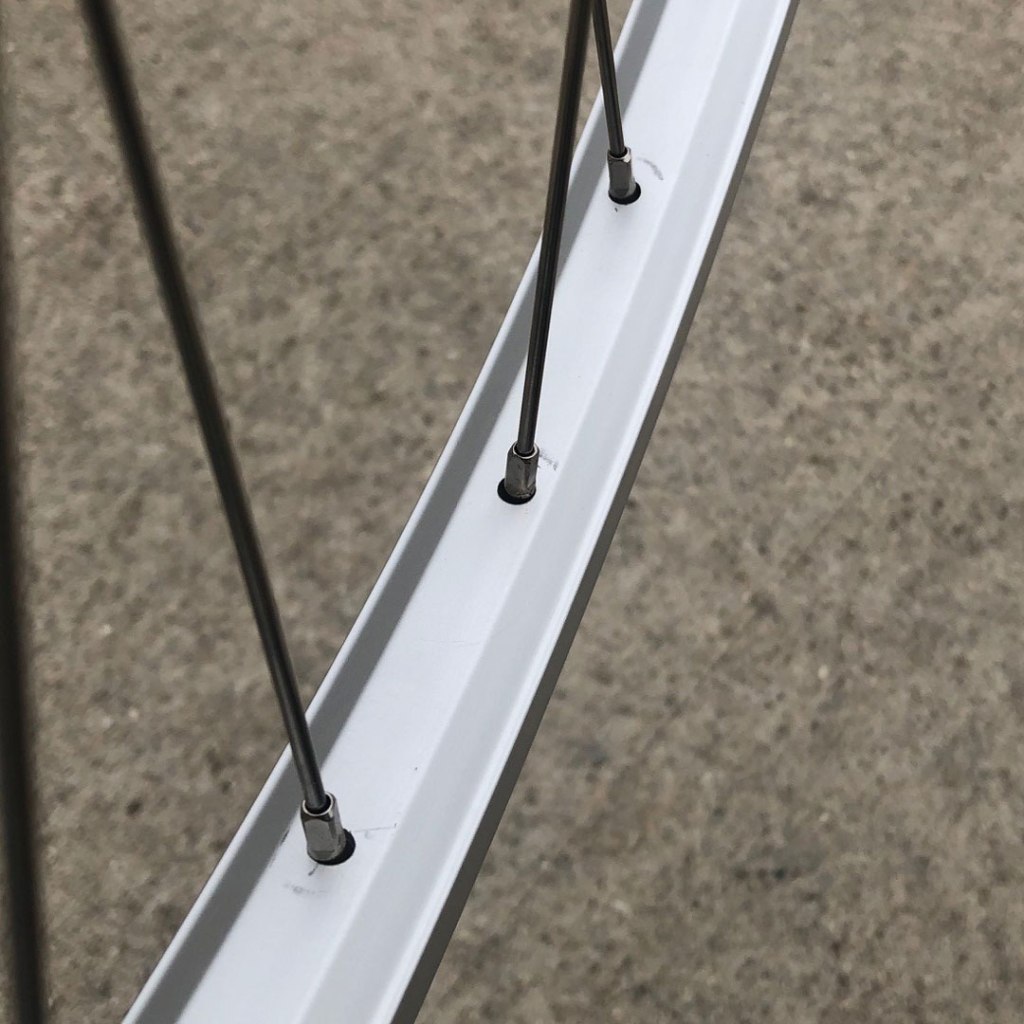

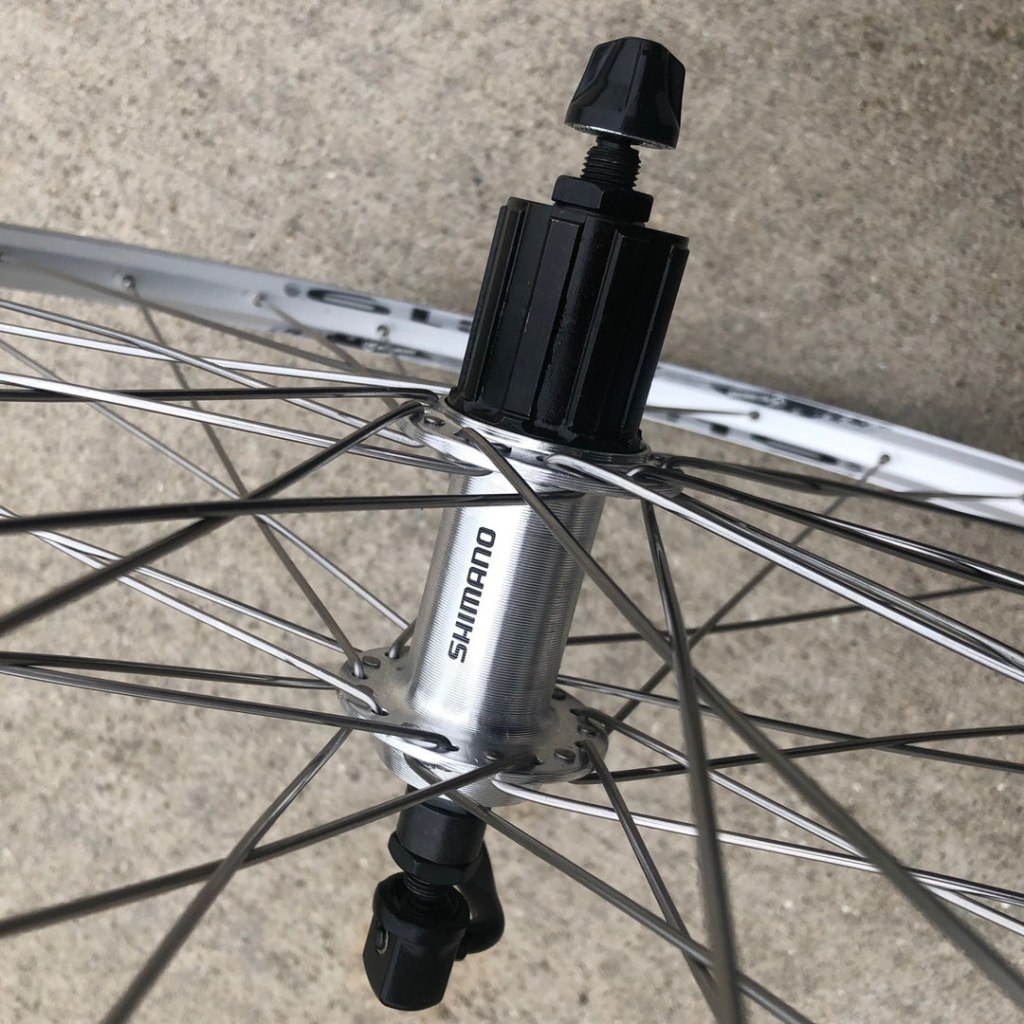

The Shimano TX500 hub is probably the highlight of the rear wheel.  Glad it doesn’t have a more generic one, as I don’t want issues.  Seems to spin fine and the rim is true.

Wheel Master Weinmann Zac 19 Rear Wheel 700c

Specs

Model: 66823

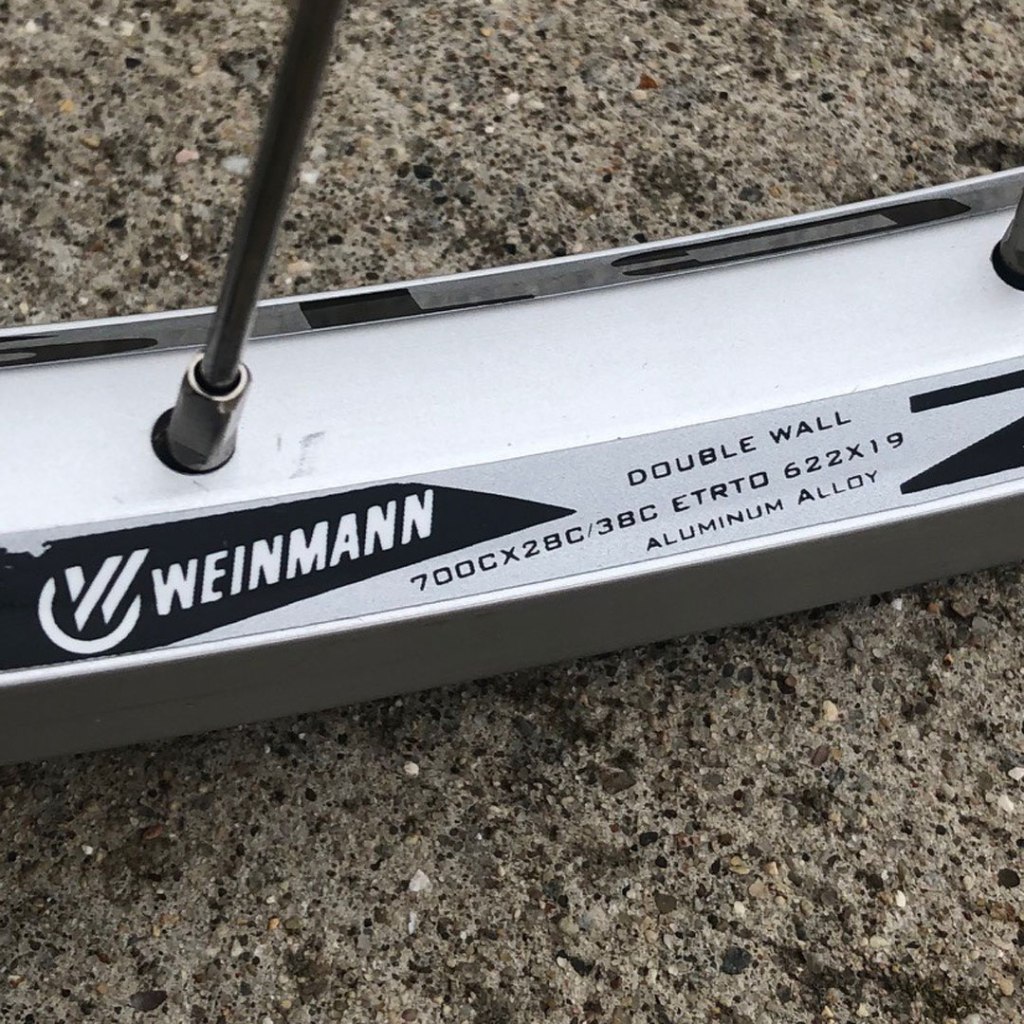

Rim: WEI ZAC19

Size: 700c

Hub: Shi TX500

Axle: QR

Gears: 8-10 speed Cassette

Brake Type: Rim

Spoke Type: 14G SS SL

Spoke Count: 36H

Eyelet: Single

Width Inside Diameter: 19mm

Rim Outside Width: 23.6mm

Joint: Pinned

Spacing: 135mm

Color: Silver

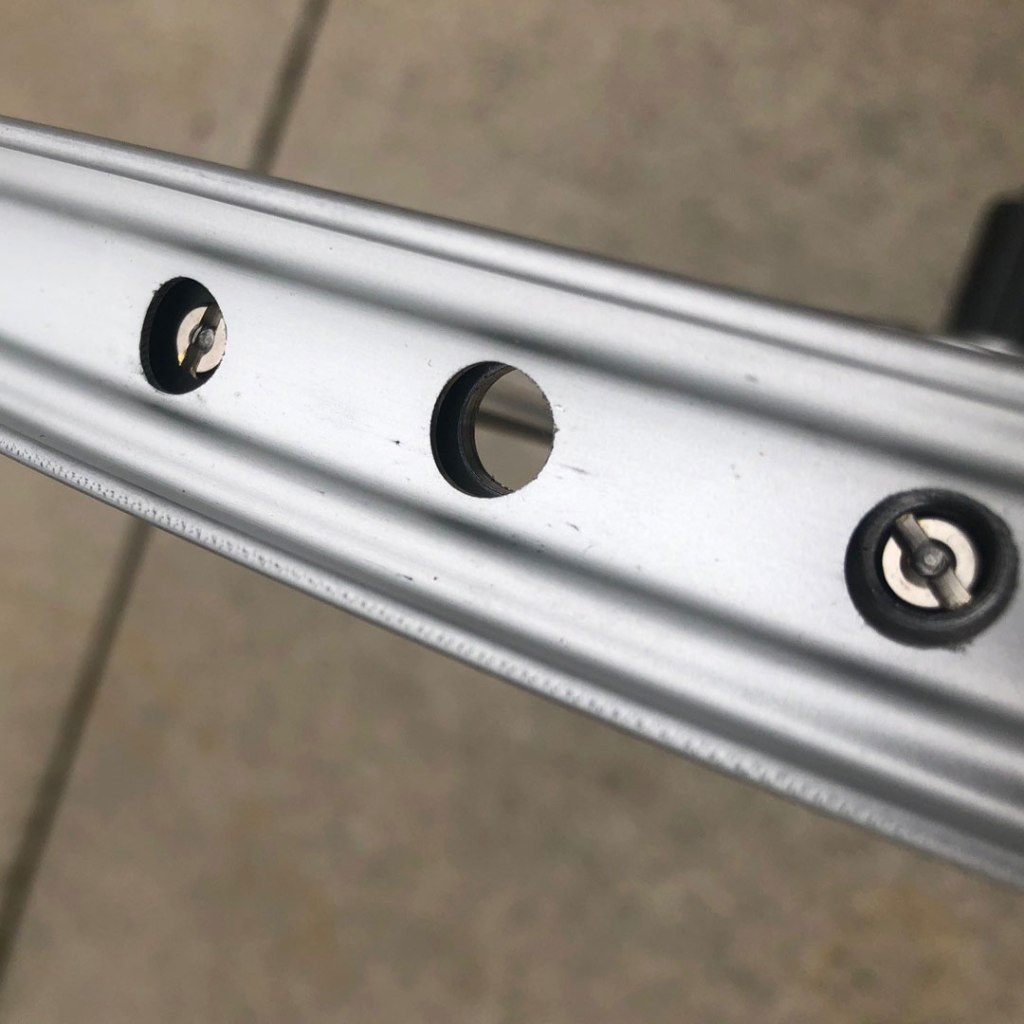

Wall: Double

Valve: Schrader

Weight: 1195 grams

Get yourself some Wheel Master wheels on Amazon:

Wheel Master 700c Rear Wheel – Quick-Release, 36H, 8-Speed Cassette Hub, Silver -Amazon

Wheel Front 700 x 35 Silver WEI-ZAC19 36H – AMAZON

I will update this review after I get some miles on them.

Published by FAB Jim The Cyclist

Jim has over 40 years of experience with bicycles and loves road and mountain biking and just going for calm cruises. He is a mechanic who has built custom bikes and is also very interested in bike history.
